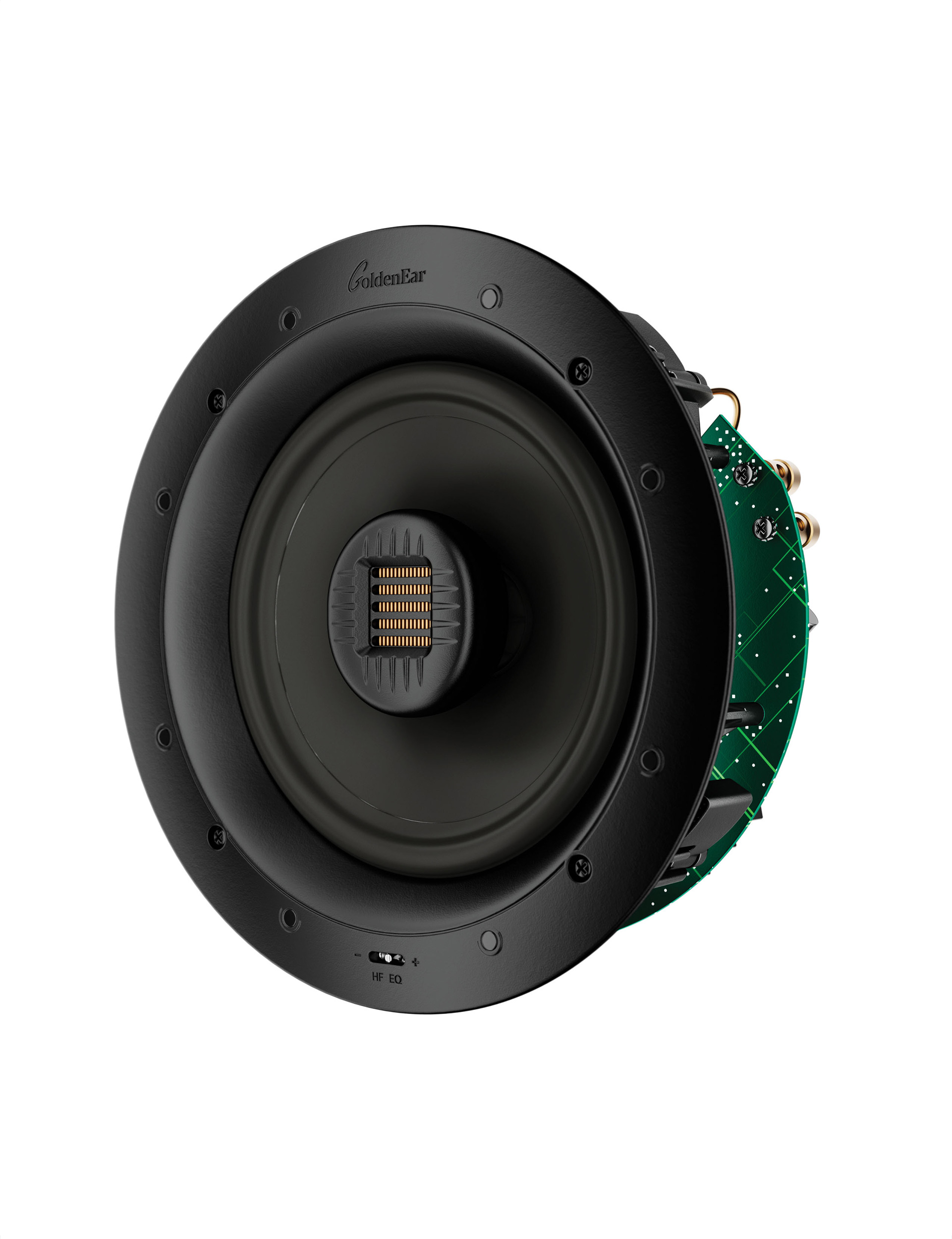

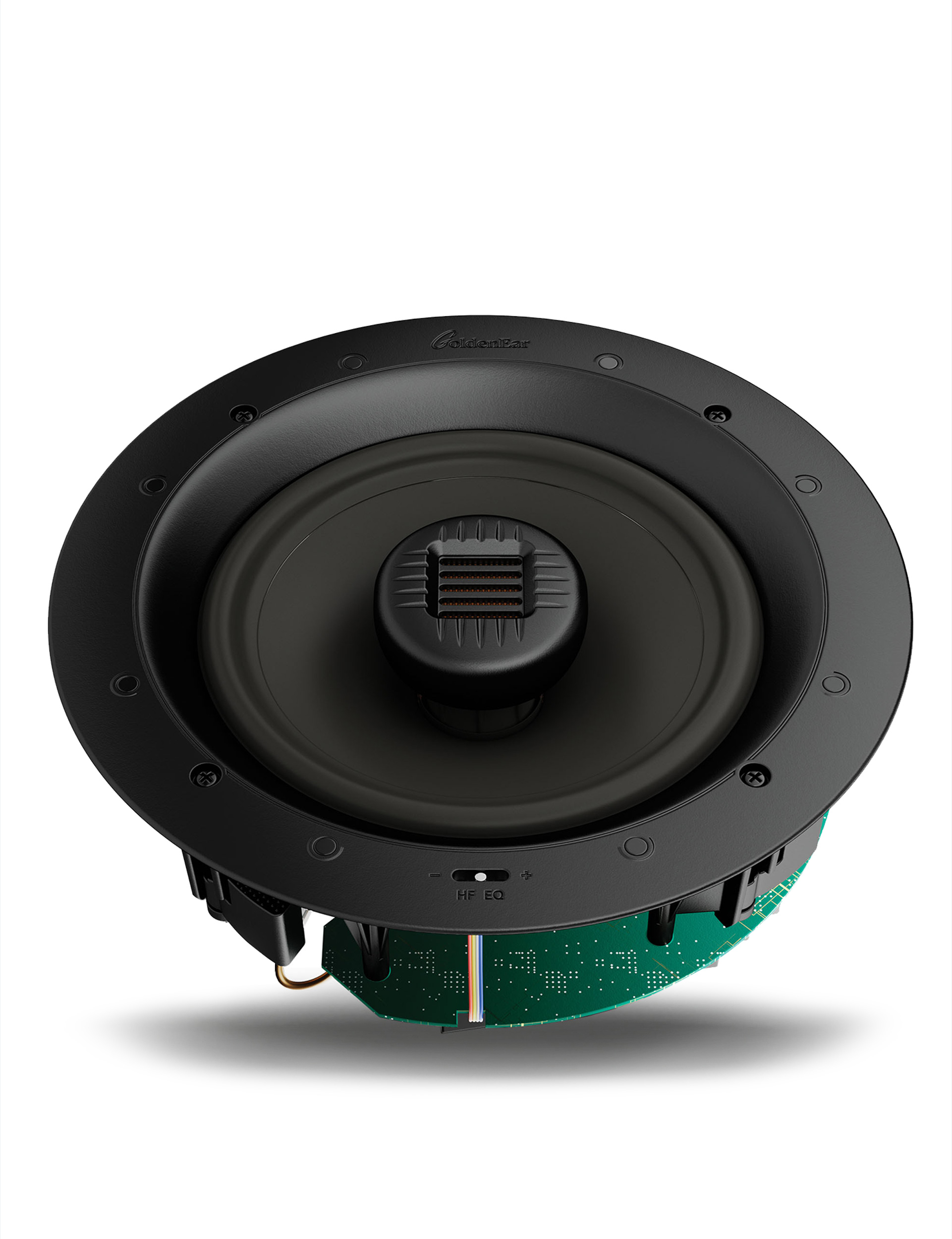

Invisa 850 In-Ceiling Loudspeaker

Overview

Enjoy surprisingly big, open sound and precise three-dimensional imaging with the GoldenEar Invisa 850 in-ceiling loudspeaker.

The Invisa 850 combines GoldenEar’s Reference High-Velocity Folded Ribbon AMT tweeter and an 8″ High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) mid/bass driver for exceptional clarity, wide dispersion, and fully immersive sound.

The angle of the 850’s tweeter can be easily adjusted to optimize dispersion and minimize unwanted reflections, adding versatility and convenience without sacrificing sonic performance. A high-frequency equalization switch allows further tailoring to the room and the listener’s tastes.

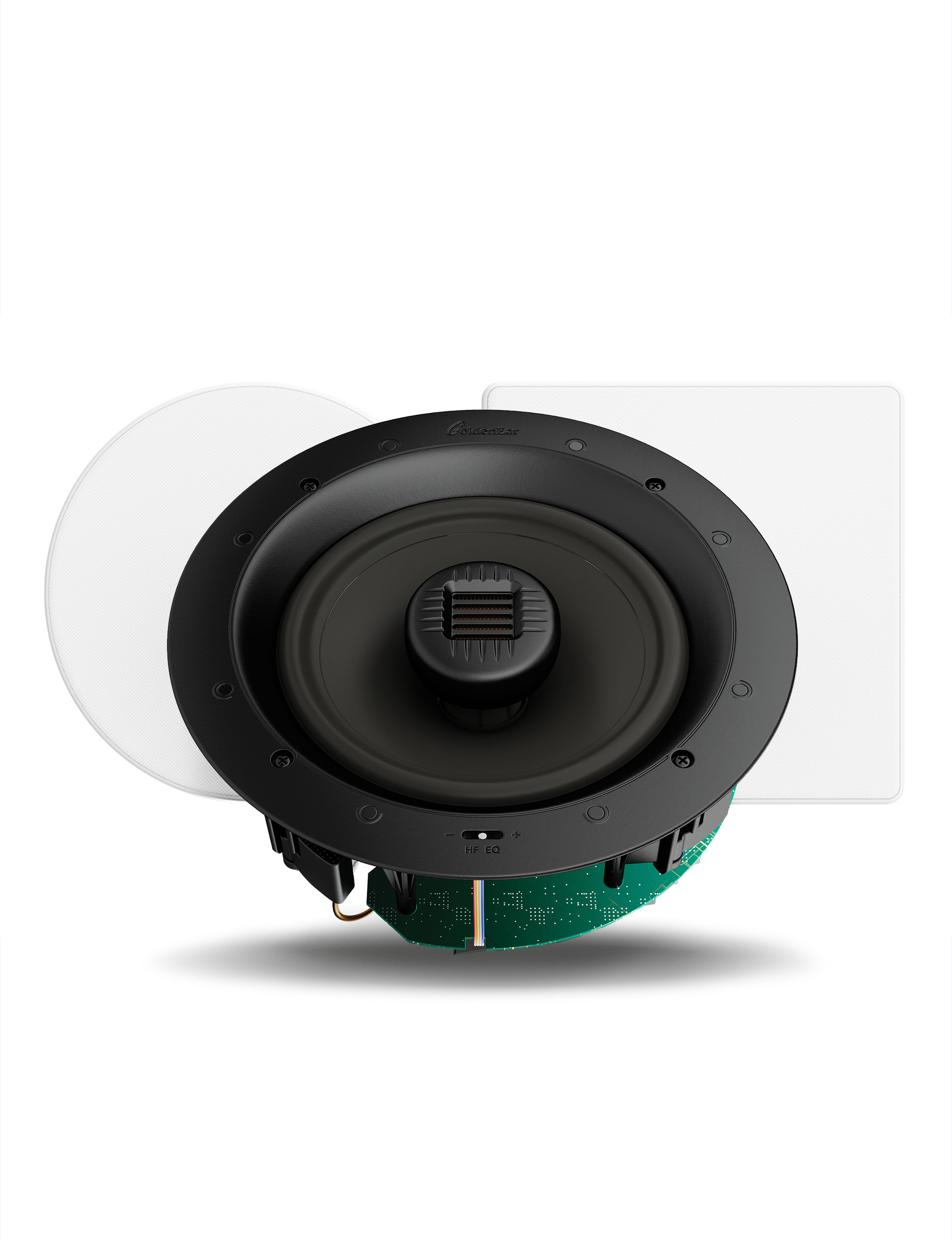

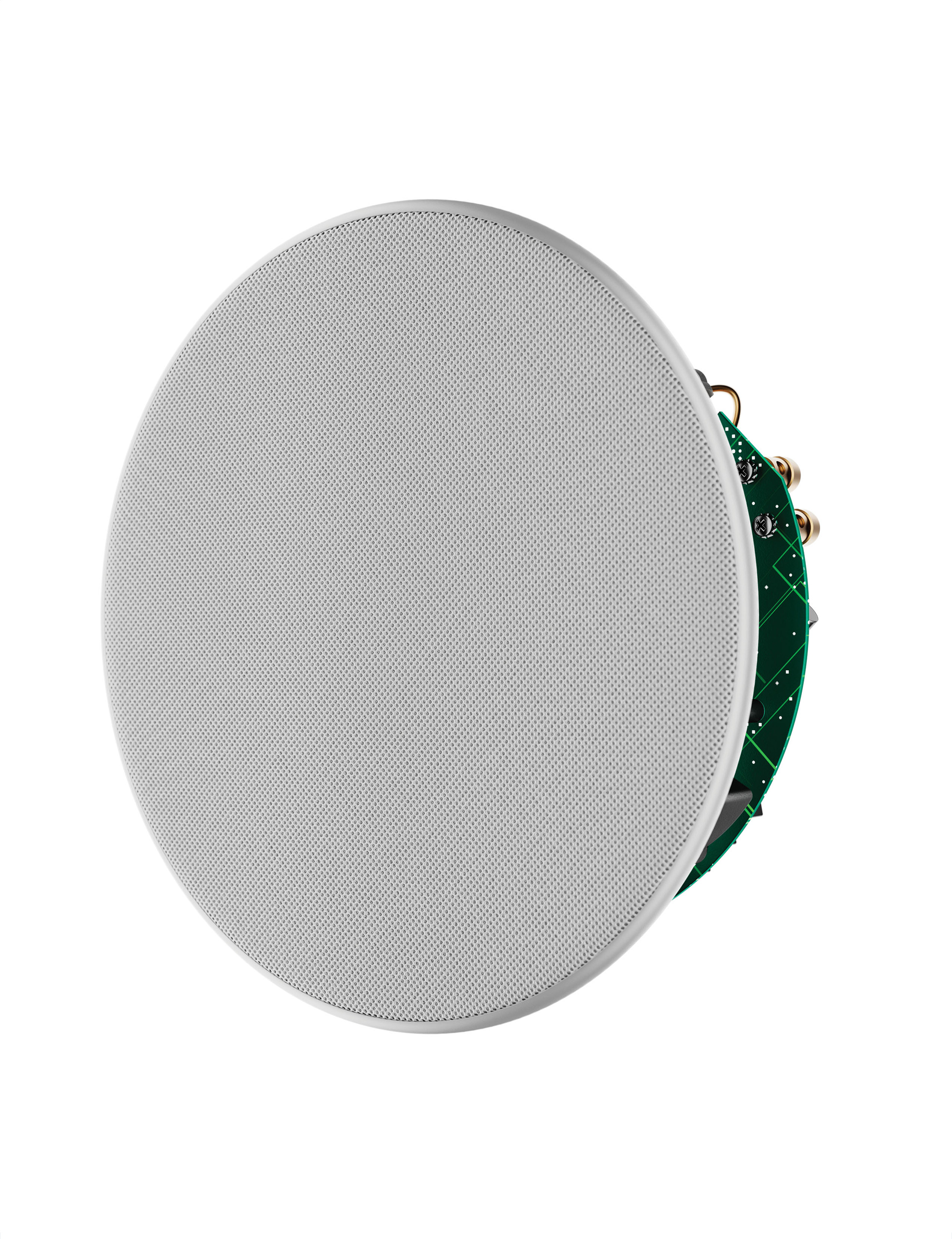

Thanks to its one-piece hidden-flange construction and magnetically attached grille, the Invisa 850 virtually disappears into its surroundings. Round grille included; ISG-850/7000 square grille and RB-850/7000 rough-in brackets also available.

invisa-850-1
GoldenEar Invisa 850 in-wall speaker
GoldenEar Invisa 850 in-wall speaker
GoldenEar Invisa 850 in-wall speaker
invisa-850-6
GoldenEar Invisa 850 in-wall speaker

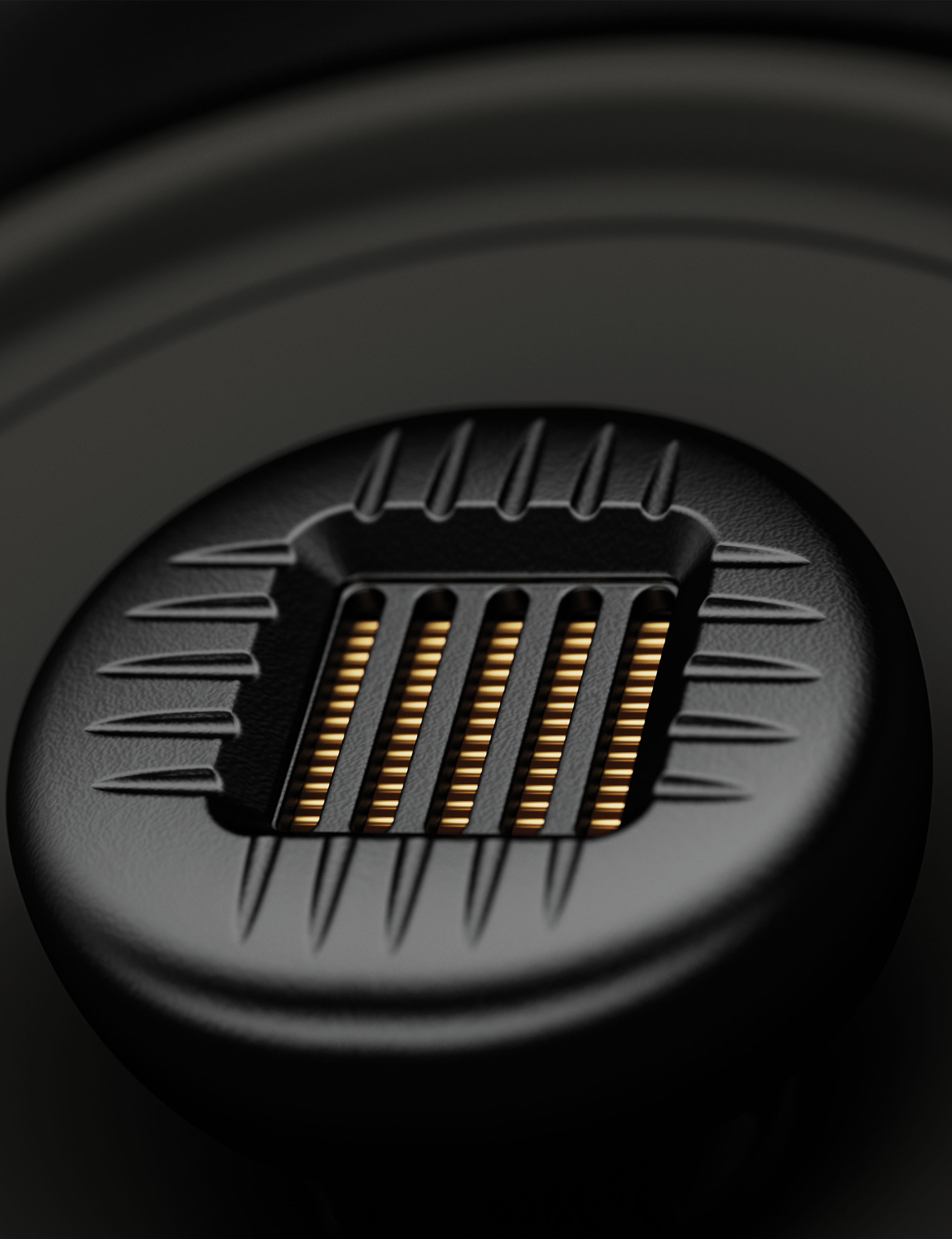

Reference High-Velocity Folded Ribbon AMT Tweeter

GoldenEar’s version of a classic Air-Motion Transformer high-frequency driver is designed for exceptional detail, extension, and smoothness with no sense of edge, etch, or aggression.
Pivotable Tweeter Design
The angle of the Invisa 850’s AMT tweeter can be easily adjusted to optimize dispersion and minimize unwanted reflections, adding versatility and convenience without sacrificing sonic performance.
High-Definition Cast-Basket Multi-Vaned Phase Plug Mid/Bass Drivers GoldenEar’s high-definition cast-basket mid/bass drivers employ Multi-Vaned Phase Plugs, improving the drivers’ ability to produce exceptional off-axis response for a cinematic soundstage and immersive listening experience.
High-Frequency EQ Control The Invisa 850 features a high-frequency EQ switch to subtly and naturally compensate for overly bright or overly dull listening environments.

Specifications

Driver Complement

One Pivotable Reference High-Velocity Folded Ribbon AMT Tweeter

One 8" (20.3cm) High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Driver

Efficiency 91dB 1W/1M @ 4Ω (2.83V/1M)
Frequency Response 40Hz–35kHz typical (-6dB on axis @ 70Hz, anechoic bass response)
Nominal Impedance 4Ω
Recommended Amplification 10 - 300Wpc
Dimensions

10" (25.4cm) diameter x 4.6" (11.8cm) D

Square Grille: 10.56" (26.82cm) x 10.56" (26.82cm)

Round Grille: 10.56" (26.82cm) diameter

Cutout: 9" (22.9cm) diameter

Weight Product: 7lbs (3.1kg); Shipping: 8.5lbs (3.9kg)
