Invisa 600

Overview

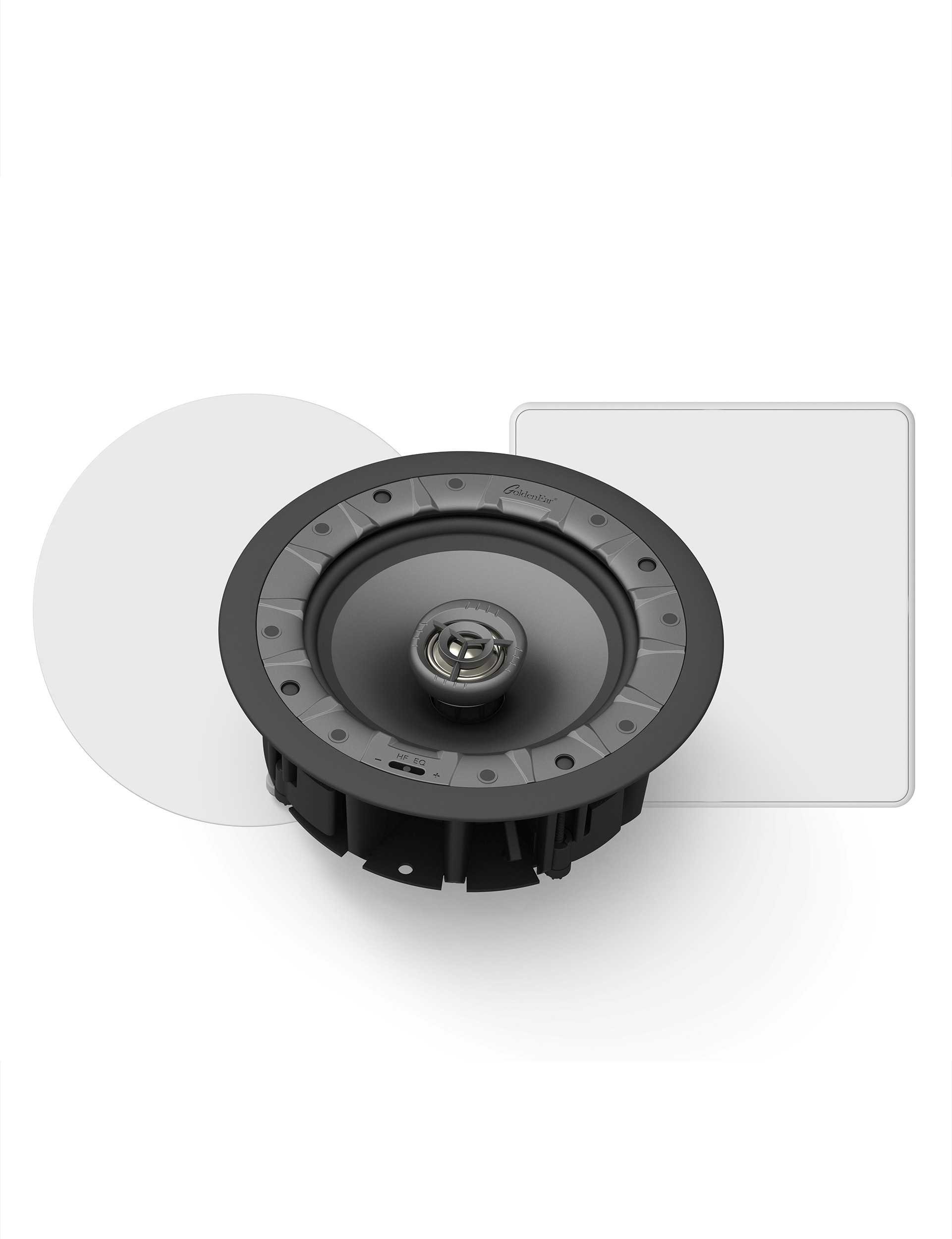

Looking for a high performance affordable alternative to the “Contractor Quality” in-walls your builder might suggest? The Invisa 600 is based on our best-selling Invisa 650, with the same one-piece marble-infused unitized driver/frame/flange construction built around the same 6.5″ driver. It also offers the same minimal footprint, which delivers the exceptional performance advantages of a 6.5″ driver based system, in a compact size comparable to the size of most competitors’ 5.25″ systems. Of course, it also features a paintable MagneLock grille with an optional square grille available.

Instead of our signature HVFR tweeter, the 600 incorporates a 1″ pure titanium dome tweeter, which has a special silk surround. It is pivotable, of course. Its performance, while not quite that of our folded ribbon, is excellent and we believe the best of any dome tweeter available in in-wall, in-ceiling architectural products. Of course, a complex crossover is utilized to ensure seamless blending and voicing is signature GoldenEar all the way

Specifications

Documents

Driver Complement

One 1" (2.54cm) Pivoting Titanium Dome Tweeter with Silk Surround

One 6.5" (16.51cm) High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Driver

Efficiency 90dB 1W/1M @ 4Ω (2.83V/1M)
Frequency Response 42Hz–22kHz typical (-6dB on axis @ 75Hz, anechoic bass response)
Nominal Impedance
Recommended Amplification 10 - 200Wpc
Dimensions

Speaker: 8.1" (21.9cm) diameter x 3.5" (8.6cm) D

Square Grille: 8.7" (21.98cm) x 8.7" (21.98cm)

Round Grille: 8.1" (22.06cm) diameter

Cutout:7.1" (18cm) diameter

Weight Product 4lbs (1.8kg); Shipping: 5lbs (2.3kg)
