Invisa HTR 8000

Overview

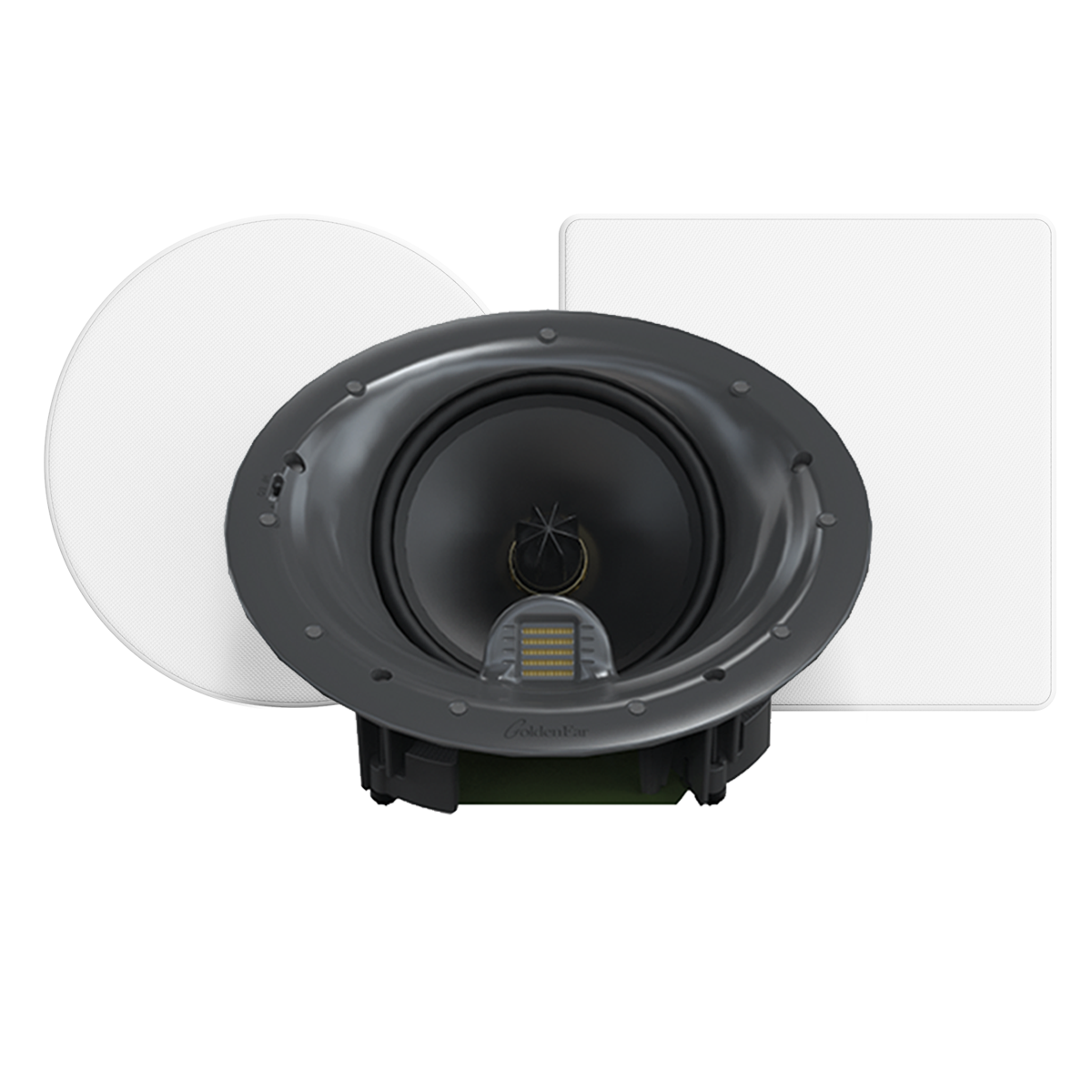

The GoldenEar Invisa HTR (Home Theater Reference) 8000 is a no-holds-barred ceiling-mounted L/C/R speaker that shares essential DNA with our critically acclaimed Triton Reference Towers. Equally suited to sophisticated home theaters and audiophile music systems, the HTR 8000 is the perfect choice for side- or rear-surround speakers in 5.1-channel or 7.1-channel systems and makes an ideal height-channel speaker for Dolby Atmos/DTS:X systems. The HTR 8000’s thoughtful design features a magnetically attached micro-perforated grille that covers all mounting hardware, allowing the speaker to seamlessly blend into most any environment. GoldenEar’s FocusField™ Technology uses drivers mounted at precisely calculated angles to create palpable, well-focused images across an expansive soundstage. The overall result is a large, open presentation with precise three-dimensional imaging that doesn’t just come from the ceiling but convincingly fills the entire room with realistic sound. For superior frequency response and remarkable clarity, the HTR 8000 combines GoldenEar’s Reference High-Velocity Folded Ribbon (HVFRTM) tweeter with an 8″ high-definition, cast-basket bass/midrange driver. In addition, it employs a highly refined crossover network with a high-frequency equalization switch, assuring well-balanced sound in virtually any room.

Specifications

Documents

Driver Complement

One Reference High-Velocity Folded Ribbon AMT Tweeter

One 8" High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Drivers

Efficiency 90dB 1W/1M @ 4Ω (2.83V/1M)
Frequency Response 40Hz–25kHz typical (-6dB on axis @ 70Hz, anechoic bass response)
Nominal Impedance
Recommended Amplification 10 - 300Wpc
Dimensions

Speaker: 12.6" (32cm) diameter x 5.9" (15.1cm) D

Square Grille: 13.2" (33.53cm) x 13.2" (33.53cm)

Round Grille: 13.2” (33.53cm) diameter

Cutout: 11.6" (29.5cm) diameter

Weight Product: 7.75lbs (3.5kg); Shipping: 10lbs (4.5kg)
