Invisa JPS In-Wall Loudspeaker

Overview

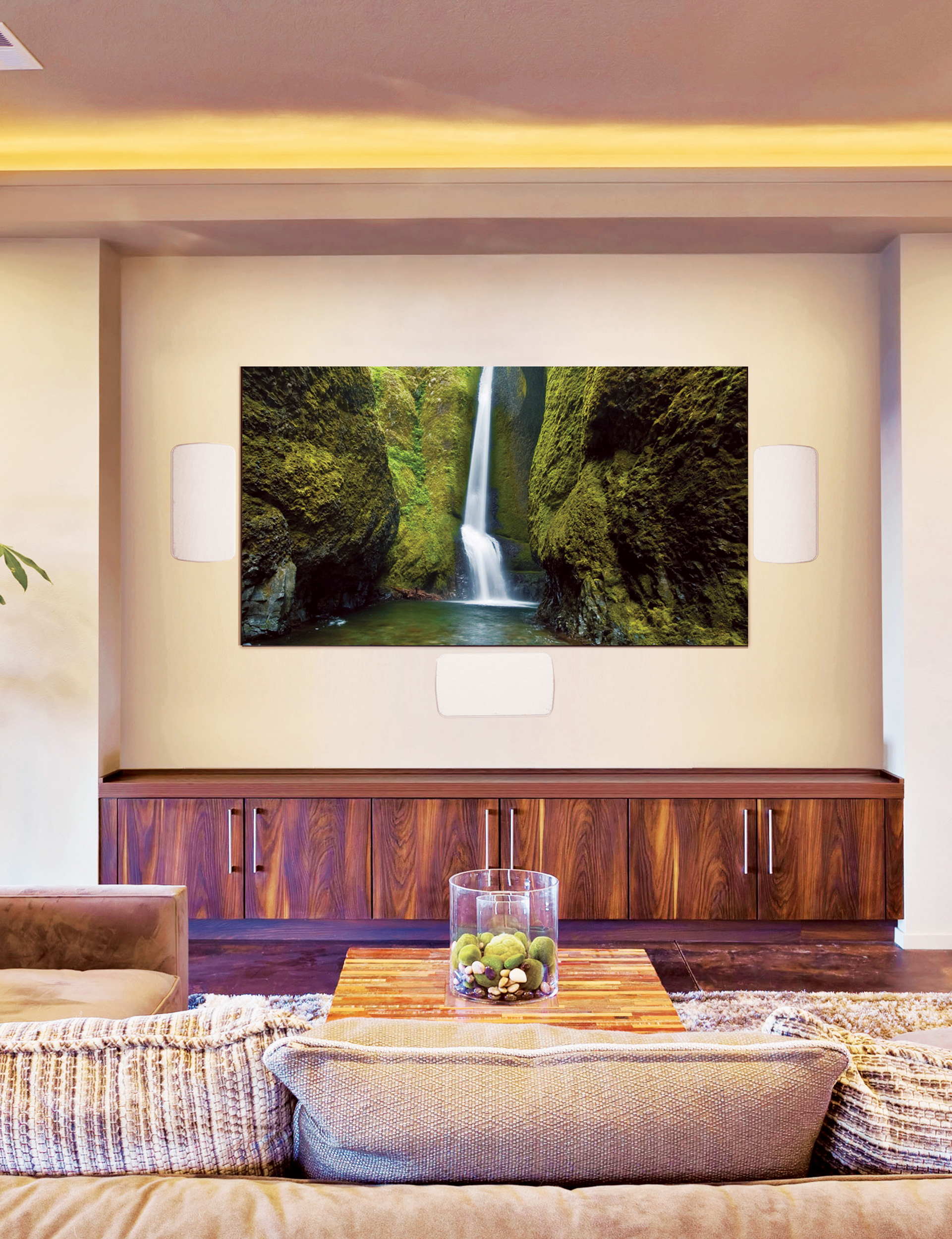

GoldenEar Invisa Point Source speakers offer excellent performance when used as front left, right, or center-channel loudspeakers, as well as side- or rear-surrounds in high-quality multi-channel home theater and music systems. Invisa JPS and SPS speakers also offer superb quality in simpler two-channel systems.

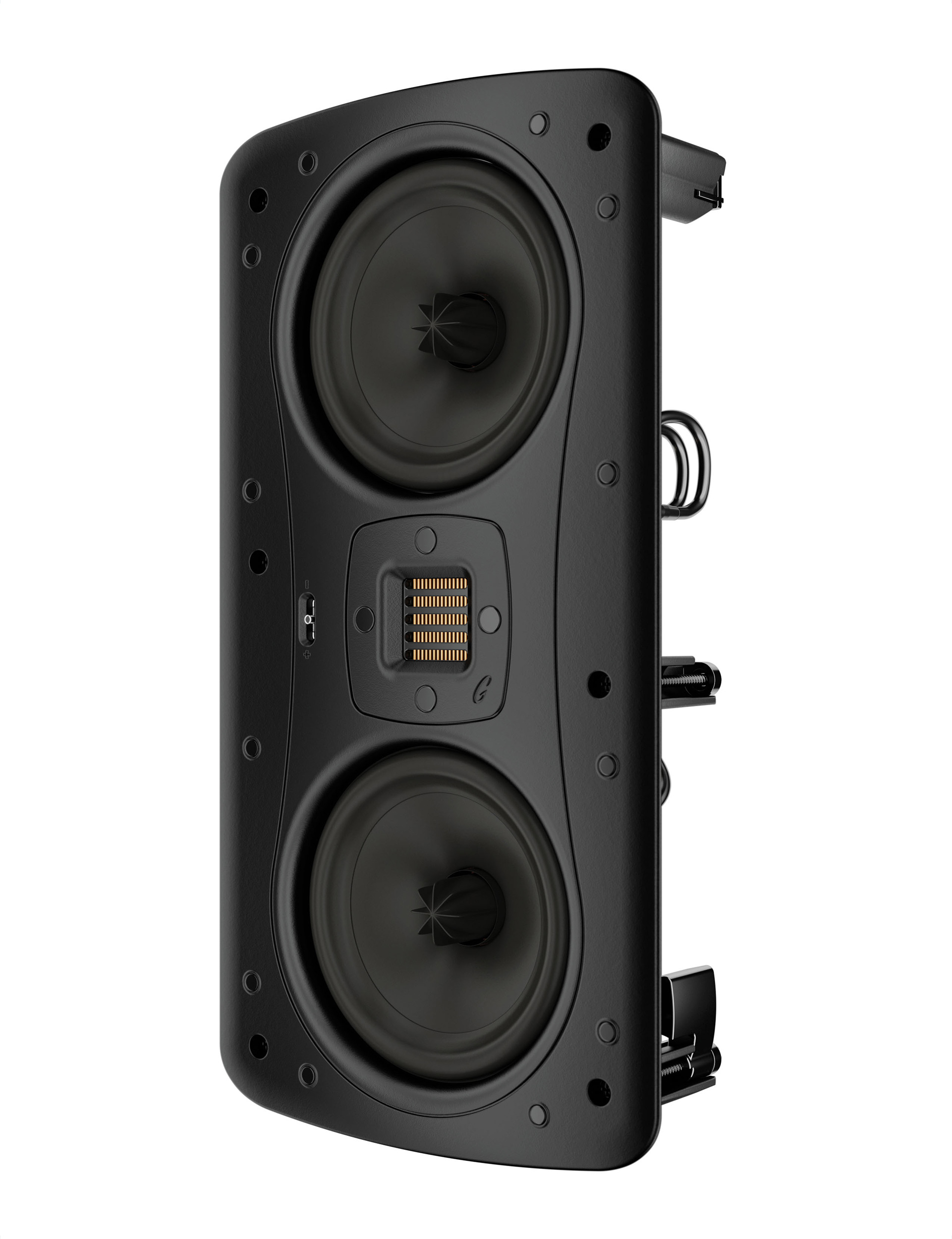

The JPS features the same rotatable Reference AMT found in the larger SPS but replaces the latter’s four 5-1/4″ mid/bass drivers with two 4-1/2″ units. When oriented horizontally, the JPS will fit neatly between wall studs, making it a perfect complement to the SPS and an excellent choice for in-wall center-channel applications.

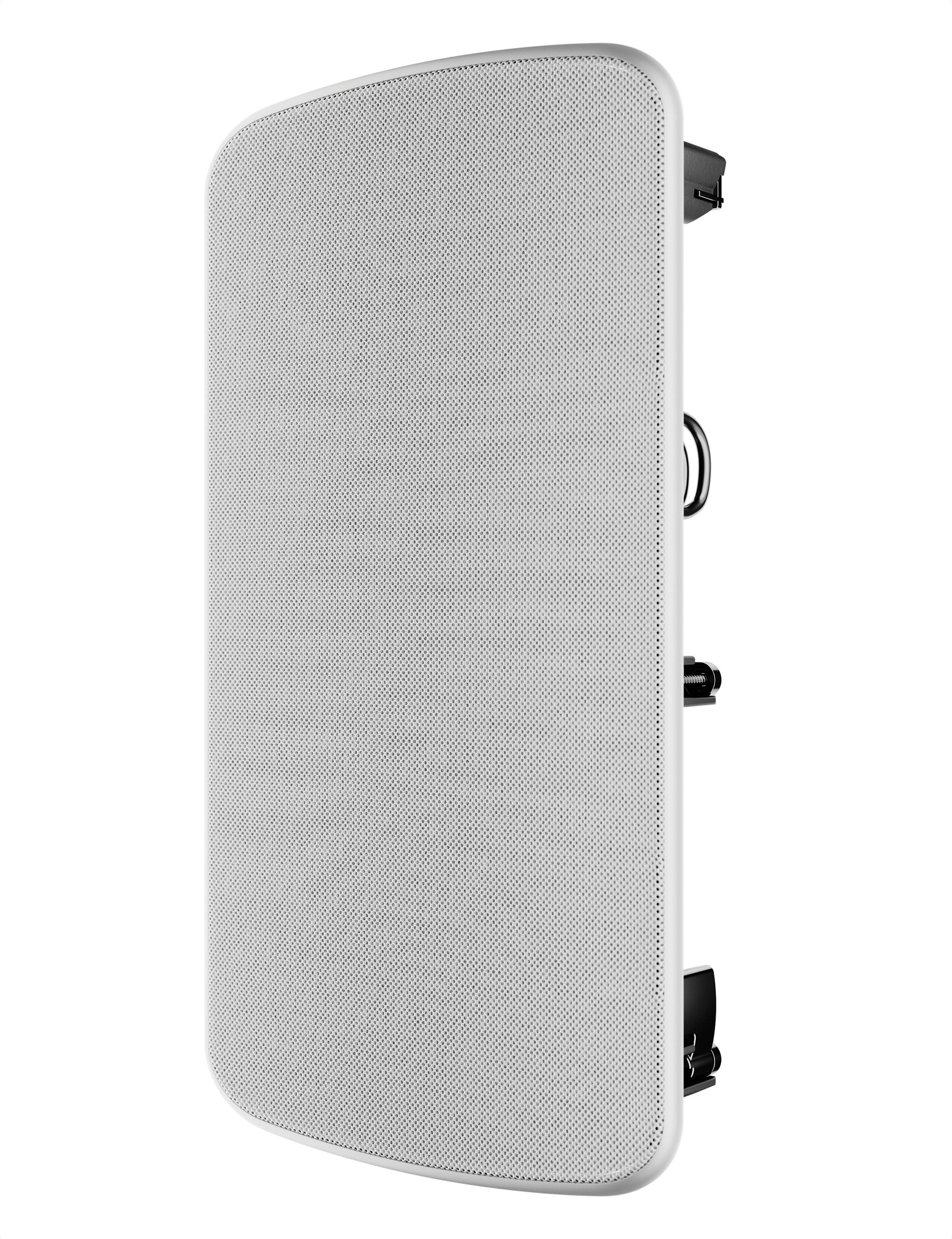

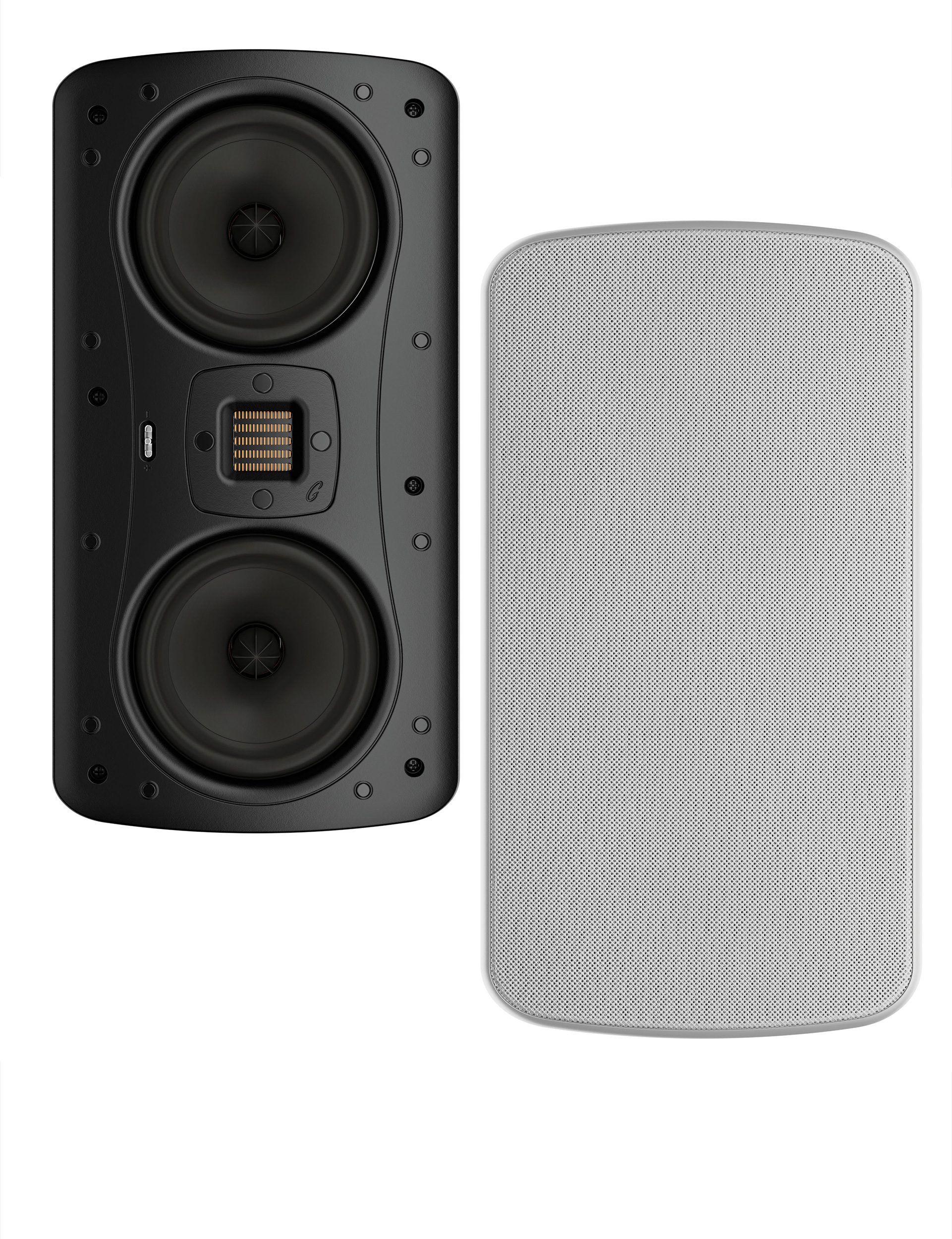

Once installed, paintable, microperforated grilles completely conceal the speakers for a seamless appearance.

GoldenEar Invisa Junior Point Source (JPS) High-Performance In-Wall/In-Ceiling Loudspeaker with Rotatable AMT Tweeter and Compact Dimensions for Front Left, Right, or Center-Channel Applications for Home Theater Enthusiasts, Movie Lovers, Audiophiles
JPS-side-by-side-front-horizontal-(1)
GoldenEar Invisa Junior Point Source (JPS) High-Performance In-Wall/In-Ceiling Loudspeaker with Rotatable AMT Tweeter and Compact Dimensions for Front Left, Right, or Center-Channel Applications for Home Theater Enthusiasts, Movie Lovers, Audiophiles
GoldenEar Invisa Junior Point Source (JPS) High-Performance In-Wall/In-Ceiling Loudspeaker with Rotatable AMT Tweeter and Compact Dimensions for Front Left, Right, or Center-Channel Applications for Home Theater Enthusiasts, Movie Lovers, Audiophiles
jps-5

Rotatable Reference High-Velocity Folded Ribbon AMT Tweeter

GoldenEar’s version of a classic Air-Motion Transformer high-frequency driver is designed for exceptional detail, extension, and smoothness with no sense of edge, etch, or aggression.
High-Definition Cast-Basket Multi-Vaned Phase Plug Mid/Bass Drivers
GoldenEar’s high-definition cast-basket mid/bass drivers employ Multi-Vaned Phase Plugs, improving the drivers’ ability to produce exceptional off-axis response for a cinematic soundstage and immersive listening experience.
High-Frequency EQ Control
The Invisa JPS features a high-frequency EQ switch to subtly and naturally compensate for overly bright or overly dull listening environments.

Specifications

Driver Complement

One Reference High-Velocity Folded Ribbon AMT Tweeter with Rotatable Faceplate

Two 4.5" High-Definition Cast-Basket MVPP™ Mid/Bass Drivers

Efficiency 90dB 1W/1M @ 4Ω (2.83V/1M)
Frequency Response 42Hz–35kHz (-6dB on axis @ 37Hz, anechoic bass response)
Nominal Impedance 4Ω
Recommended Amplification 10-250Wpc
Dimensions

Speaker: : 13.8" (35.3cm) H x 7.25" (18.3cm) W x 3.25" (8.4cm) D

Grille: 14.5" (36.8cm) x 7.75" (19.9cm) W

Cutout: 14.5" (36.8cm) x 7.75" (19.9cm) W

Weight 6lbs (2.7kg)

Documents

Download Invisa JPS Manual

Download Invisa Brochure
