Invisa MPX

Overview

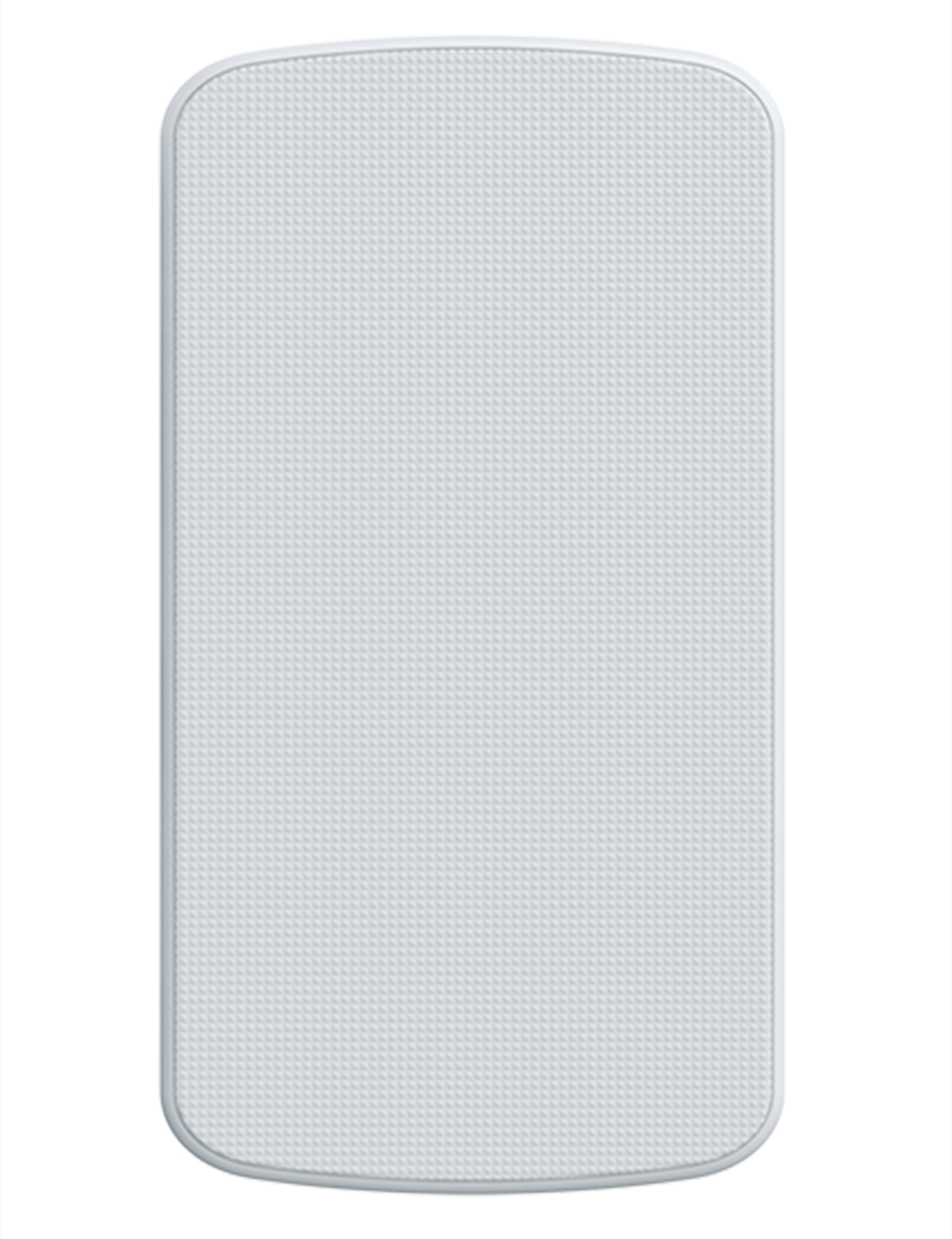

The Invisa MPX MultiPolar™ In-Wall/In-Ceiling Loudspeaker, with its dual 4.5″ bass/midrange drivers, combines the advantages of a direct-radiating loudspeaker with enhanced spaciousness and dispersion. This makes them the perfect choice for the rear or side surround channels of a multi-channel installation, as well as for front main speakers or for distributed audio multi-room installations. It can be easily mounted in walls or ceilings and is very flexible in terms of orientation. Like the other ceiling Speakers / in wall speakers from the Invisa Series, it has a flat magnetically attached micro-perf grille that covers the flange for an attractive, nearly invisible look. It combines two precisely angled spiderleg cast-basket 4.5″ bass/midrange drivers, a High-Velocity Folded Ribbon Tweeter (HVFR™) and a complex precision crossover network with a high-frequency equalization switch. Like the Invisa HTR 7000, it features GoldenEar’s unique Non-Periodic Diffraction Control and Wave-Launch technology for enhanced clarity and source-less sound radiation into the room.

Specifications

Documents

Driver Complement

One High-Velocity Folded Ribbon AMT Tweeter

Two 4.5" (11.43cm) High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Driver

Efficiency 89dB 1W/1M @ 4Ω (2.83V/1M)
Frequency Response 40Hz–25kHz typical (-6dB on axis @ 70Hz, anechoic bass response)
Nominal Impedance
Recommended Amplification 10 - 250Wpc
Dimensions

Speaker: 13.9" (35.4cm) H x 7.2" (18.4cm) W x 3.7" (9.5cm) D

Square Grille: 14.5" (36.83cm) H x 7.8" (19.68cm) W

Round Grille: n/a

Cutout: 12.75" (32.4cm) H x 6.27" (15.9cm) W

Weight Product: 6lbs (2.7kg); Shipping: 10lbs (4.5kg)
