Invisa SP 652

Overview

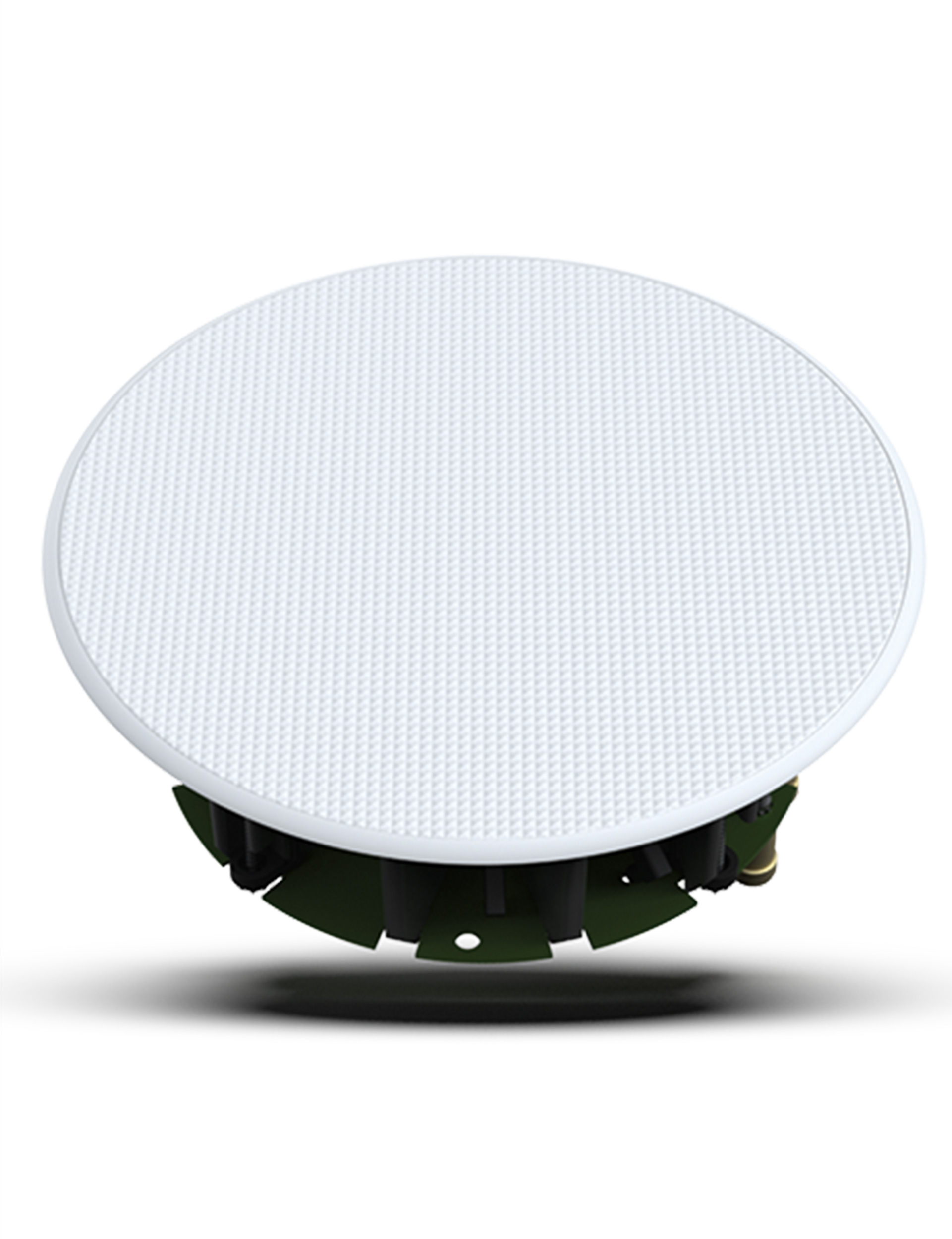

Similar to the Invisa 650, the Invisa SP 652 is a very versatile all-in-one stereo speaker, which, when both channels are paralleled, also makes a great bipolar surround speaker as well as an in-ceiling height speaker. Solidly constructed of a marble-infused polymer, the unitized construction actually has the high-definition wide-dispersion dual-wound voice-coil 6-1/2” driver constructed as an integral part, with clear performance advantages. Special care has been taken to minimize deleterious diffraction effects that are common in many other stereo ceiling speakers that sink the drivers deeply into the structure. The two superb, but costly, HVFR™ tweeters are mounted in a special acoustically optimized high-frequency pod with a precisely calculated angle to maximize stereo coverage and radiation into the room. It is unique to find tweeters of this quality in single point stereo speakers. Two complex crossovers incorporating the highest quality components are utilized to precisely blend the drivers for seamless exquisite sound quality. A specially contoured santoprene anti-resonance/diffraction-control ring is incorporated around the driver and covering the surrounds to further optimize performance. There is also a high-frequency equalization switch to precisely match the SP 652 to any environment.

Specifications

Documents

Driver Complement

Two High-Velocity Folded Ribbon AMT Tweeter

One 6.5" (16.51cm) Dual-Wound Voice-Coil Mid/Bass Driver

Efficiency 86dB 1W/1M @ 5Ω (2.83V/1M)
Frequency Response 42Hz–25kHz typical (-6dB on axis @ 85Hz, anechoic bass response)
Nominal Impedance
Recommended Amplification 10 - 125Wpc
Dimensions

Speaker: 8.1" (21.90cm) diameter x 3.4" (8.73cm) depth

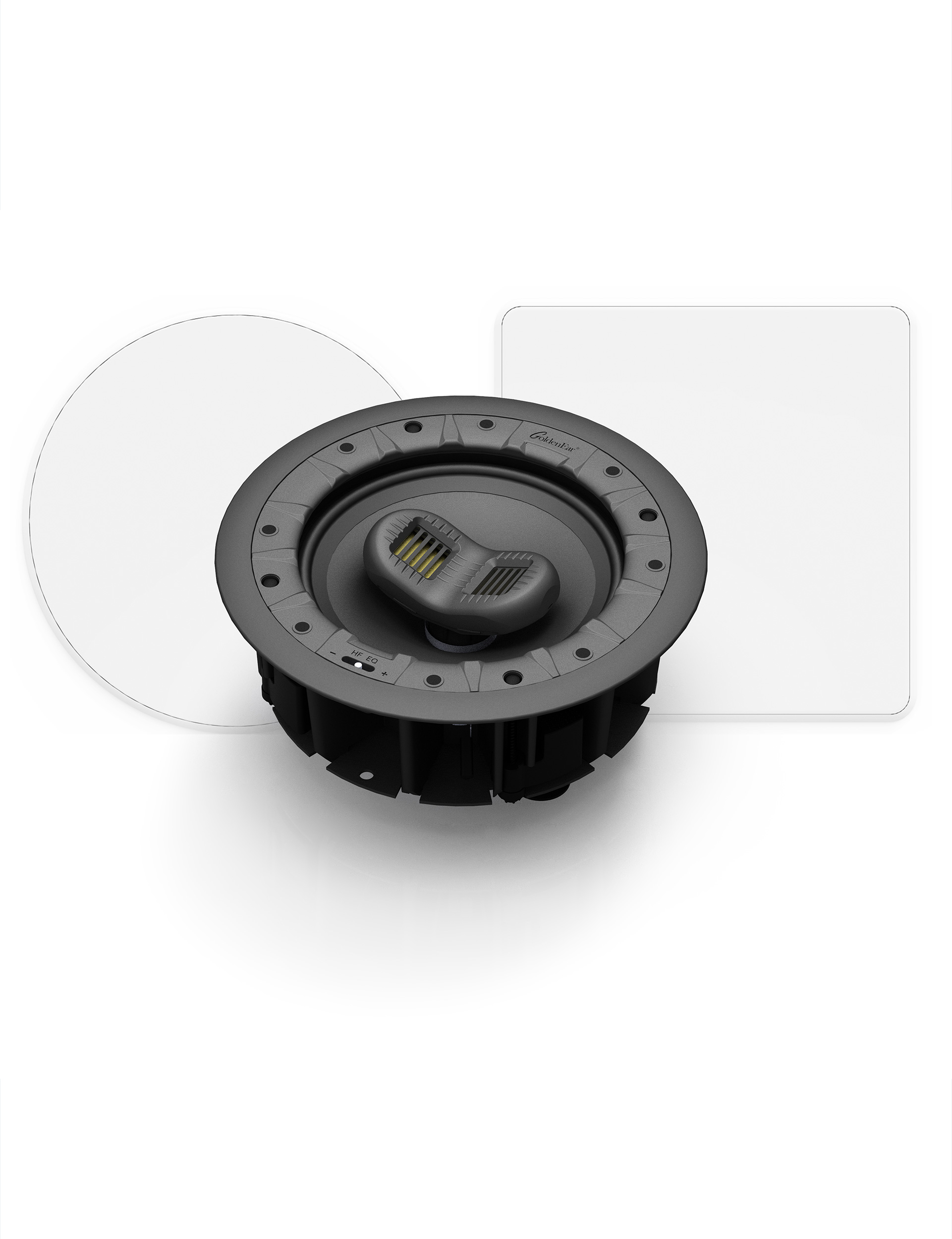

Square Grille: 8.7" (21.98cm) x 8.7" (21.98cm)

Round Grille: 8.6" (22.06cm) diameter

Cutout: 7.1" (18cm) diameter

Weight Product: 4.25lbs (1.9kg); Shipping: 5.75lbs (2.6kg)
