SuperSat 60 and 60C

Overview

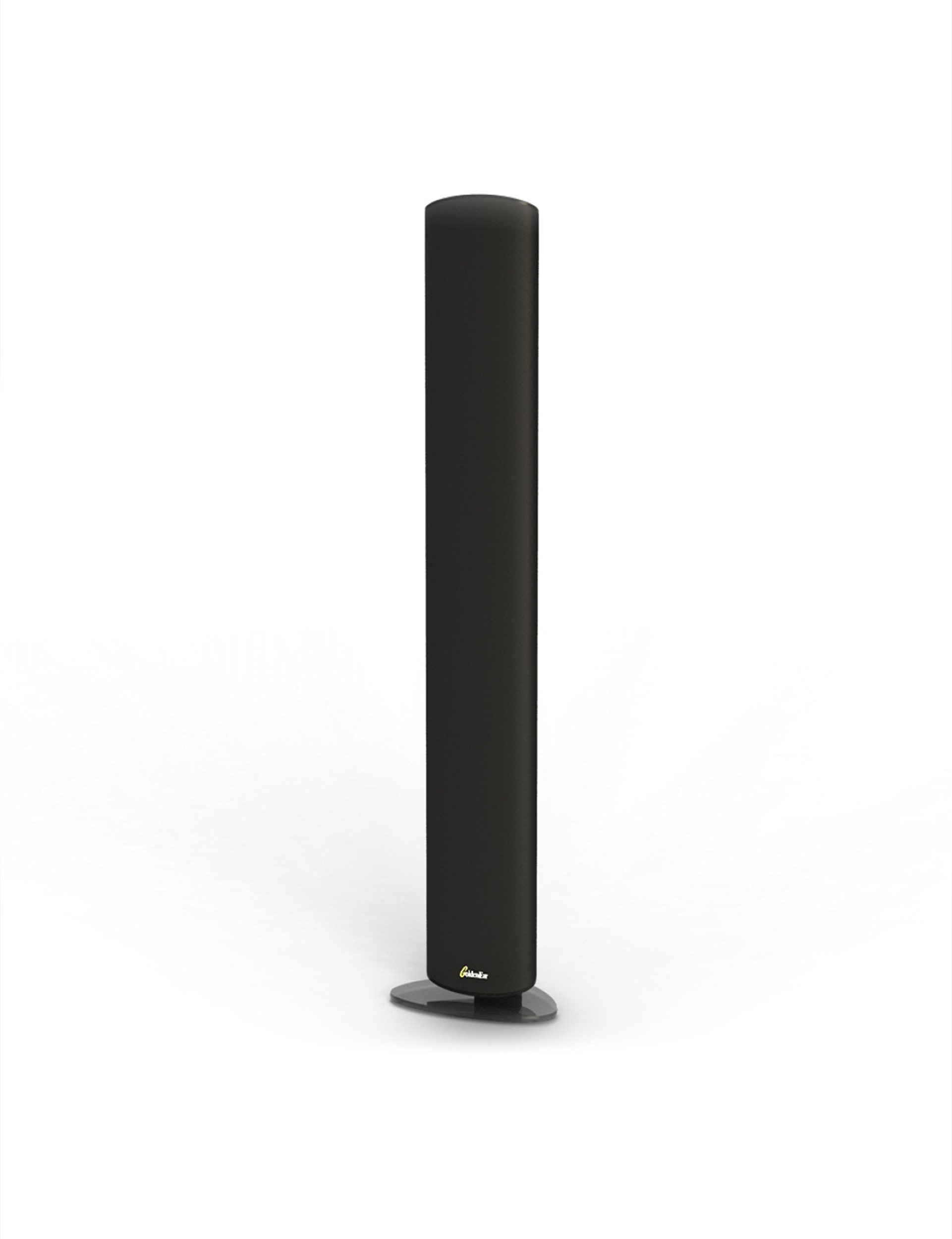

The SuperSat 60 and 60C (SuperSat 60 – shown on optional Table/Shelf stand) are larger, more powerful versions of our award-winning SuperSat 50 and 50C. They are designed to complement 60″ and larger screens when used as left and right channels and mounted vertically next to them, as well as all screen sizes when used as a horizontal center channel or mounted on their optional stands. They provide a larger, more powerful, higher power-handling step-up from our SuperSat 50C when used as a center channel paired with any of our Triton Towers or with any of our other speakers including the SuperSat 50s.

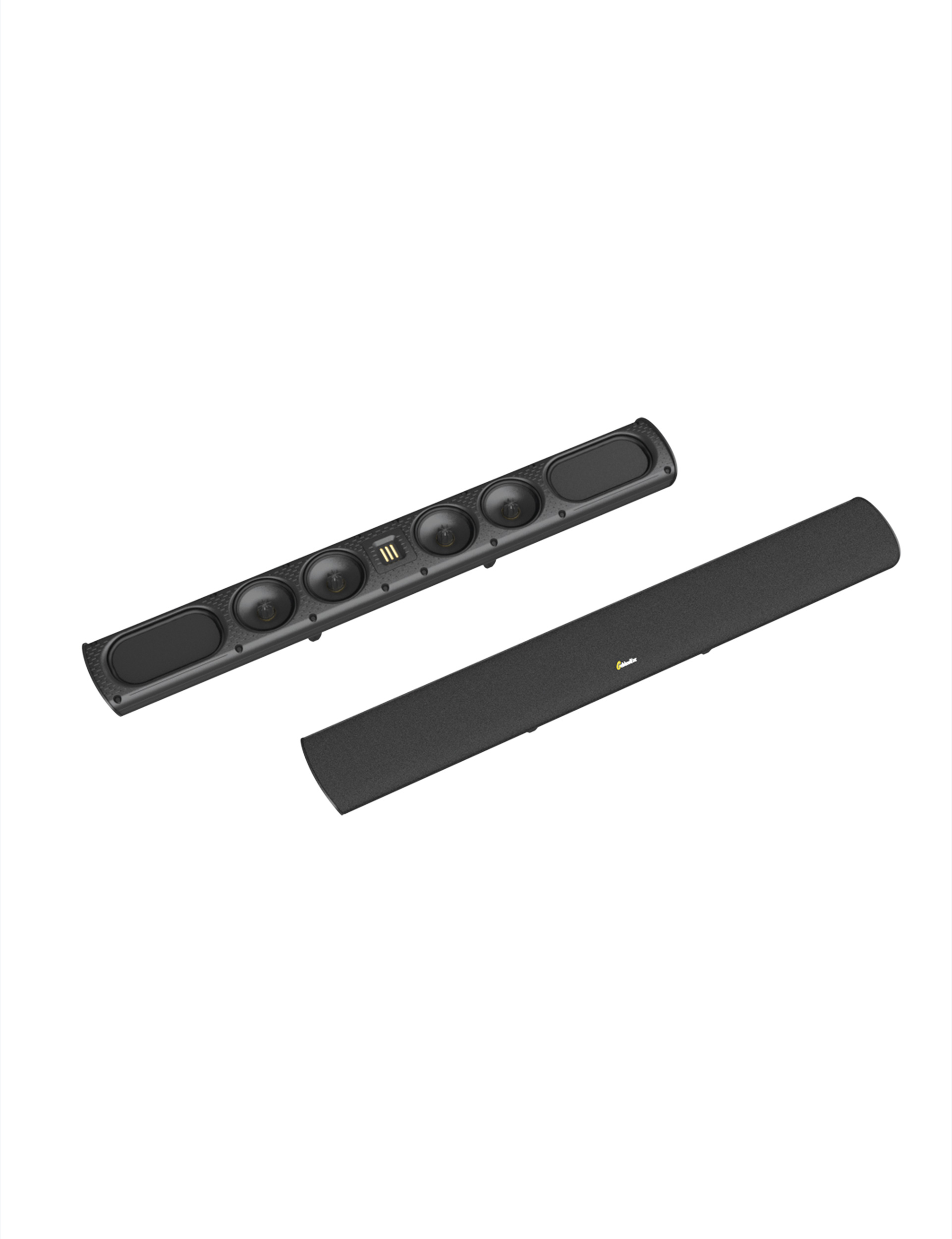

The sleek, attractively sculpted cabinet follows the same design philosophy that won the SuperSat 50 the highly respected Resi Award as the industry’s best looking on-wall loudspeaker. It is constructed from aerospace-grade aluminum and finished in gorgeous piano-gloss black. It contains four GoldenEar engineered 4.5″ cast spiderleg-basket bass/midrange drivers with Multi-Vaned Phase-Plugs (MVPP) configured in a two-stage D’Appolito Array surrounding our signature High-Velocity Folded Ribbon high-frequency radiator. Two 4″ x 7″ quadratic planar low frequency radiators complete the driver complement, perfectly loading the bass/midrange drivers for open, boxless midrange and extended low-frequency response.

The SuperSat 60 and 60C’s very thin depth makes them perfect for wall mounting next to the latest super thin TVs. This is easily accomplished using the threaded inserts or keyhole mounts on the rear. Dual adjustable feet allow multiple angles when shelf-mounting the horizontal center-channel 60C. In addition, optional floor and tabletop stands are available for vertical mounting – note total height of speaker and floor stand is 48

SuperSat 60 (Satellite)

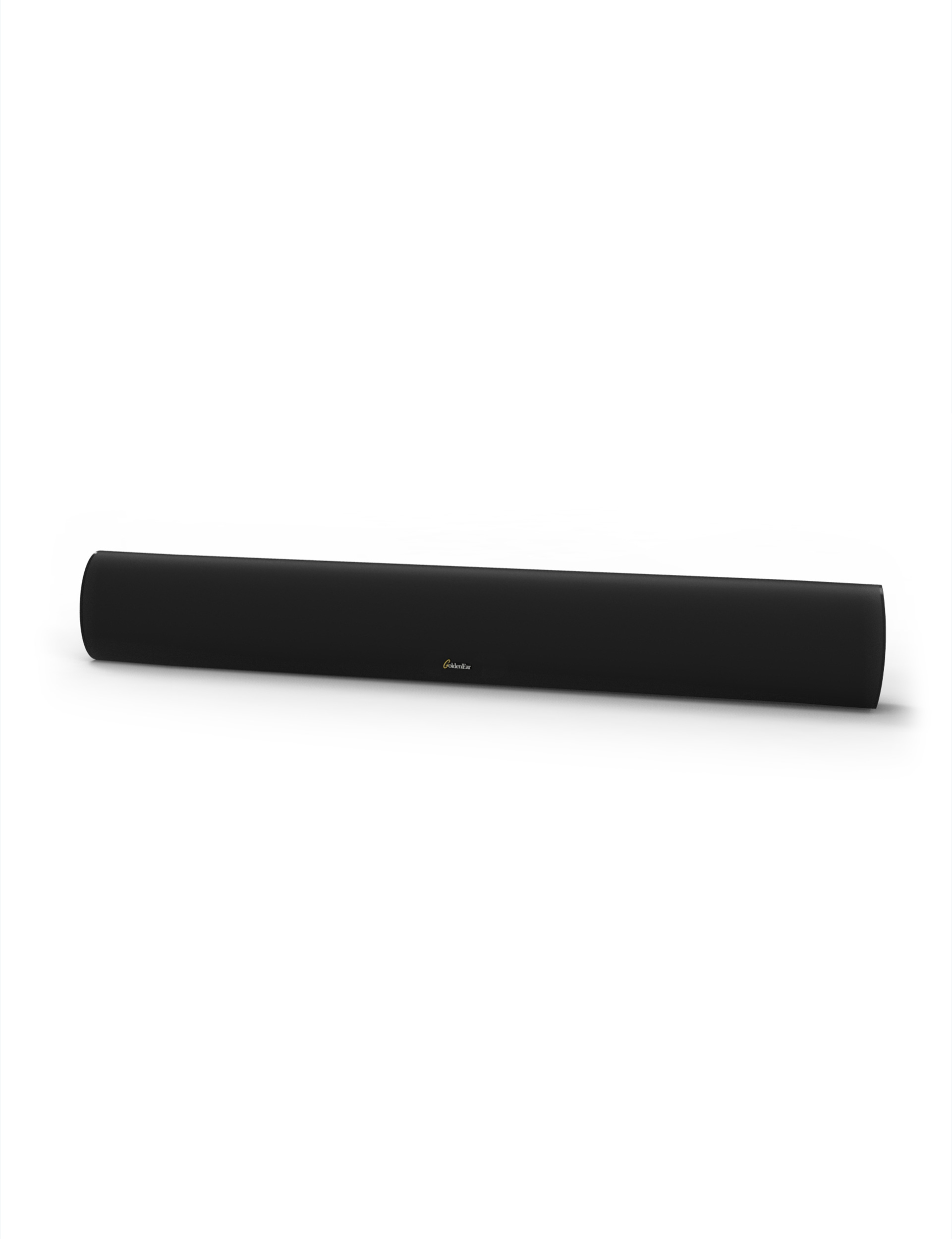

SuperSat 60C (Center)

Specifications

Driver Complement

One High-Velocity Folded Ribbon AMT Tweeter

Four 4.5" High-Definition Cast-Basket Multi-Vaned Phase Plug (MVPP) Mid/Bass Drivers

Two 4" x 7" Quadratic Planar Low-Frequency Radiators

Passive Radiator Surface Area 17.14in2 (110.6cm2)
Efficiency 91 dB 1W/1M @ 4Ω (2.83V/1M)
Frequency Response 65Hz–25kHz typical (-6dB on axis @ 66Hz, anechoic bass response)
Nominal Impedance
Recommended Amplification 20 - 300Wpc
Dimensions 35.1" (88.9 cm) W x 4.75" (12.1 cm) H x 2.8" (7 cm) D
Weight Product: 11 lbs (5 kg) / Shipping: 15 lbs (6.8 kg)
